National Retail Data Monitor for Public Health Surveillance

Michael M. Wagner,¹ F-C. Tsui,¹ J. Espino,¹ W. Hogan,¹ J. Hutman,¹ J. Hersh,² D. Neill,³ A. Moore,^1,3 G. Parks,¹ C. Lewis,⁴ R. Aller^5
1University of Pittsburgh, Pittsburgh, Pennsylvania; ²Pennsylvania Department of Health, Harrisburg, Pennsylvania; ³Carnegie Mellon University, Pittsburgh, Pennsylvania; ⁴Massachusetts Department of Public Health, Boston, Massachusetts; ⁵Los Angeles Department of Health, Los Angeles, California

Corresponding author: Michael M. Wagner, Real-Time Outbreak and Disease Surveillance Laboratory, University of Pittsburgh, Suite 500, Cellomics Building, 500 Technology Drive, Pittsburgh, PA 15219. Telephone: 412-383-8137; Fax: 412-383-8135; E-mail: mmw@cbmi.pitt.edu.

Abstract

The National Retail Data Monitor (NRDM) is a public health surveillance tool that collects and analyzes daily sales data for over-the-counter (OTC) health-care products. NRDM collects sales data for selected OTC health-care products in near real time from >15,000 retail stores and makes them available to public health officials. NRDM is one of the first examples of a national data utility for public health surveillance that collects, redistributes, and analyzes daily sales-volume data of selected health-care products, thereby reducing the effort for both data providers and health departments.

Introduction

The National Retail Data Monitor (NRDM) is a public health surveillance tool that collects and analyzes daily sales data for over-the-counter (OTC) health-care products from >15,000 retail stores nationwide. NRDM makes aggregated and analyzed data available to public health officials free of charge (1).

A key rationale for building NRDM is that persons with infectious diseases often purchase OTC health-care products early in the course of their illnesses (2,3). Furthermore, retrospective studies of certain outbreaks have indicated that monitoring OTC sales might have led to earlier detection (4--6). After decades of investment into developing Universal Product Codes (UPCs), optical check-out scanners, and analytic data warehouses, the retail industry has in effect constructed 95% of a surveillance-system pyramid onto which a capstone of data integration and analytic capability can be added to produce NRDM.

NRDM's objectives are to 1) enlist participation of retailers to achieve 70% coverage of OTC sales nationally; 2) influence the industry toward real-time data collection; 3) obtain supplemental information needed for spatial analysis, adjustment for promotional effects, and maintenance of UPC analytic categories (e.g., liquid cough medications); 4) promote and develop this type of surveillance practice; 5) achieve fault and load tolerance; and 6) develop detection algorithms for the data.

Methods

The methods used to acquire and analyze retail data have been described in detail elsewhere (1). This paper summarizes and updates that information.

Data Acquisition

Data-sharing agreements between retailers and the University of Pittsburgh enable the university to collect daily sales counts by store and by UPC. Retailers transmit data to NRDM by secure file transfer protocol daily by 3:00 pm Eastern Time for the previous day's sales. NRDM aggregates the data by zip code and product category.

Data Analysis

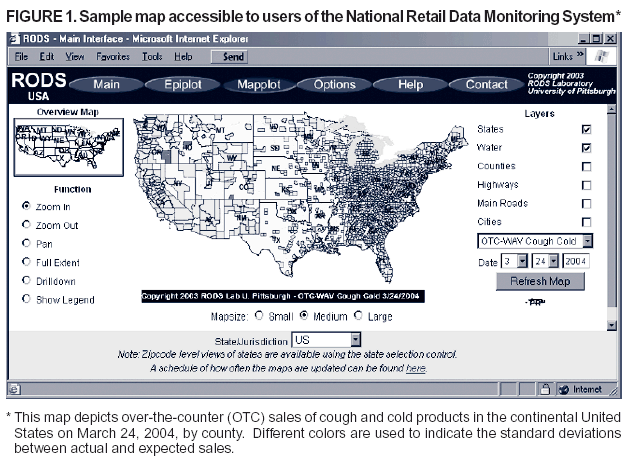

Health departments receive either aggregated data or access to data-analysis tools via a secure Internet interface. The tools allow users to view sales of OTC health-care products on maps (Figure 1) and timelines.

Various NRDM algorithms are under development, including 1) temporal and 2) spatio-temporal. The temporal algorithm involves univariate time-series analyses, one for each combination of category and zip code. Where u_zct represents the unit sales of category c in zip code z on day t, the univariate detector learns a model from the set of sales before today {u_zc1 u_zc2 … u_zc,t-2 u_zc,t-1}. NRDM uses a specially tailored wavelet model (7) to predict units sold today. The advantages of wavelets are their ability to account for long-term trends (e.g., seasonal effects) and short-term properties (e.g., day-of-week effects). In its simplest form, the model predicts a Gaussian distribution for today's sales, with mean and variance learned from sales before today. The actual sales for today can be compared with this Gaussian distribution to produce a z-score (i.e., the number of standard deviations by which today's sales lie above the mean). The z-score can be converted to a p-value to signal alerts.

The spatio-temporal algorithm runs a specially tailored spatial scan statistic (8) over all regions. Each region is evaluated according to the likelihood ratio of the data under the assumption of an increased product demand in the region versus no such increase. Because the data are on a national level, computational tractability is a major concern for such a use of the scan statistic. A fast multiresolution method is used (9).

Fault and Load Tolerance

A key requirement for NRDM is fault and load tolerance. NRDM is fault-tolerant, with the exception of the server site and Internet connection, which are single and therefore subject to loss of connection. These vulnerabilities will be addressed by creation of a second site and second Internet connection. Load tolerance refers to NRDM's ability to handle simultaneous access by a substantial number of users. Preliminary load-tolerance tests using Apache JMeter (10) have identified certain bottlenecks, which have since been rectified. Complete load testing is planned to determine the maximum number of simultaneous users NRDM can accommodate.

Project Administration

NRDM requires substantial administrative work, including managing contacts with retailers, executing data-sharing agreements, coordinating meetings, handling press inquiries, developing fact sheets, and raising and dispensing funds. This work is handled jointly by volunteers from state and local health departments, staff of the Real-Time Outbreak and Disease Surveillance Laboratory, and a University of Pittsburgh associate general counsel.

Initially NRDM was organized as a university-based, grant-funded project. In May 2003, representatives from four state health departments (Pennsylvania, New York, Ohio, and Georgia) founded an informal association to provide leadership and guidance that holds monthly conference calls; the association is open to any health department.

Results

NRDM has operated continuously since December 2002. The project uses explicit measures of progress and reports them monthly to the working group, including

• number of retail stores participating;
• time latency;
• number of states with accounts for the NRDM user interface;

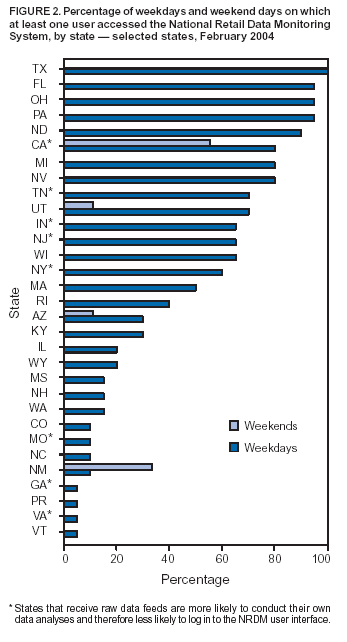

• proportion of weekdays and weekends that NRDM user interfaces are accessed; and
• number of states receiving raw data from NRDM.

  As of March 2004, progress towards the goal of 70% data coverage (a level achievable using data from national chains) has reached approximately 40% of total national sales. The time latency is 1 day for all retailers (with one exception that provides a feed every 2 hours). The project has created >400 user accounts for health department employees in 44 states and Puerto Rico. Ten entities receive aggregate data feeds from the system. Progress towards integration of NRDM into public health practice is measured by the number of system logins. Analyses are conducted to track daily and monthly usage and to compare weekday and weekend logins (Figure 2). A level of 100% usage means that at least one user in the state logged in each day. Weekend checking remains low but might increase as public health departments recognize the need to evaluate surveillance data as it becomes available, 7 days/week.

  Prospective evaluation of NRDM as a public health surveillance tool is underway. For example, NRDM has demonstrated the marked effect of influenza on sales of pediatric cough and cold remedies and pediatric antipyretics, or the effect of fires in southern California on sales of bronchial remedies. (Authorized public health users can access case studies of these and other outbreaks by using the NRDM Internet interface. To obtain access, please send e-mail to nrdmaccounts@cbmi.pitt.edu).

  Future Plans

  From an early warning perspective, the single most important improvement to NRDM will be a reduction in reporting latency after the time of purchase. Better detection performance might also be achieved through improved algorithms, which are under development.

  Because they share geographic borders, the United States and neighboring countries need interoperable public health surveillance capability. Retail data monitoring is feasible in Canada, Mexico, and other countries where retailers use the UPC system or the European Article Numbering system, with which it is interconvertible. A permanent organizational home for NRDM is also being explored, with an estimated annual operating cost of approximately $1 million.

  Conclusions

  NRDM is a data utility that collects, redistributes, and analyzes daily sales-volume data of selected health-care products. A national-level, data-utility approach reduces the effort required for health departments to monitor sales of OTC health-care products. Health departments can instead concentrate on analysis of data and investigation of anomalies.

  Acknowledgments

  Grant support for NRDM is provided by Pennsylvania Department of Health Bioinformatics Grant ME-01 737; Alfred P. Sloan Foundation; Passaic Water Commission; and the New York State, Washington, Ohio, and Utah departments of health. Participating corporations include ACNielsen, Information Resources, Inc., National Association of Chain Drug Stores, and Global Strategic Solutions.

  References

1. Wagner MM, Robinson JM, Tsui F-C, Espino JU, Hogan W. Design of a national retail data monitor for public health surveillance. J Am Med Inform Assoc 2003;10:409--18.
2. Labrie J. Self-care in the new millenium: American attitudes towards maintaining personal health. Washington, DC: Consumer Healthcare Products Association, 2001.
3. McIsaac WJ, Levine N, Goel V. Visits by adults to family physicians for the common cold. J Fam Pract 1998;47:366--9.
4. Corso PS, Kramer MH, Blair KA, Addiss DG, Davis JP, Haddix AC. Cost of illness in the 1993 waterborne Cryptosporidium outbreak, Milwaukee, Wisconsin. Emerg Infect Dis 2003;9:426--31.
5. Stirling R, Aramini J, Ellis A, et al. Waterborne cryptosporidiosis outbreak, North Battleford, Saskatchewan, Spring 2001. Can Commun Dis Rep 2001;27:185--92.
6. Mac Kenzie WR, Hoxie NJ, Proctor ME, et al. A massive outbreak in Milwaukee of Cryptosporidium infection transmitted through the public water supply. N Engl J Med 1994;331:161--7.
7. Zhang J, Tsui F-C, Wagner MM, Hogan WR. Detection of outbreaks from time series data using wavelet transform. Proc AMIA Symp 2003;748--52.
8. Kulldorff M. A spatial scan statistic. Communications in Statistics---Theory and Methods 1997;26:1481--96.
9. Neill D, Moore AW. A fast multi-resolution method for detection of significant spatial overdensities. Pittsburgh: School of Computer Science, 2003;CMU-CS-03-154.
10. Apache Software Foundation. Apache JMeter, version 1.9 [Software]. Forest Hill, MD: Apache Software Foundation, 2003. Available at
    http://jakarta.apache.org/jmeter.
